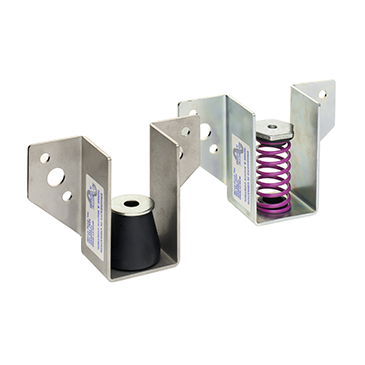

Spring and Rubber Acoustic Ceiling Hangers
Type JSH and JRH
A comprehensive range of steel spring and rubber acoustic ceiling hangers, offering the designer a choice between low frequency vibration isolation or optimum performance at higher audible frequencies, if noise control is of paramount importance.
More Information
- Epoxy powder coated steel frame tested to 5 x rated load. Other steel parts are zinc plated.
- Rubber hangers supplied with failsafe steel overload washers.
- Capable of up to 15° angular misalignment.
- Can be fitted in drop rod or direct to the supporting structure.

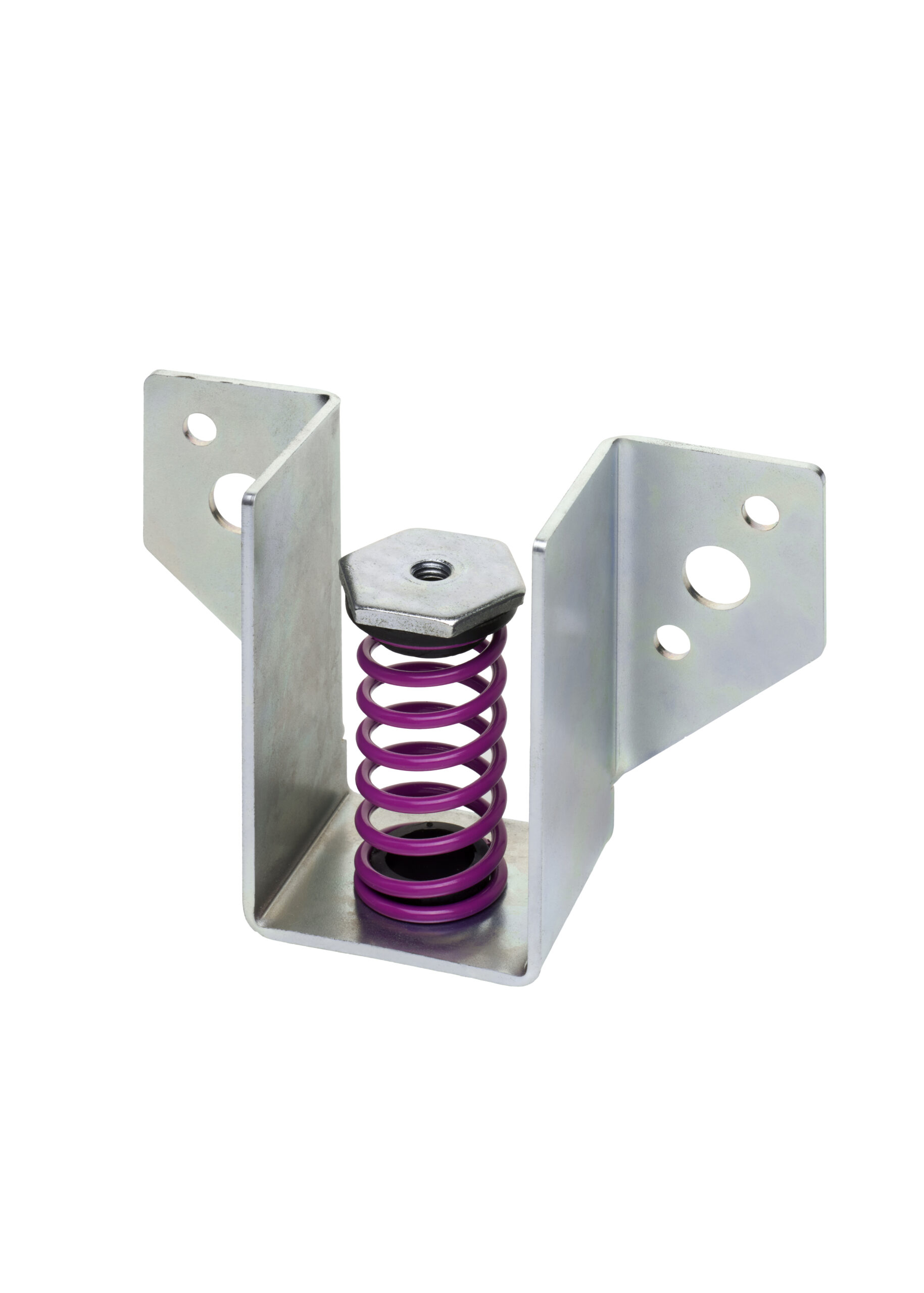

- Colour coded helical steel springs to BS1726 Class B with nominal deflections up to 20 mm laterally stable with 50% overload capacity.
- All steel components are zinc plated.

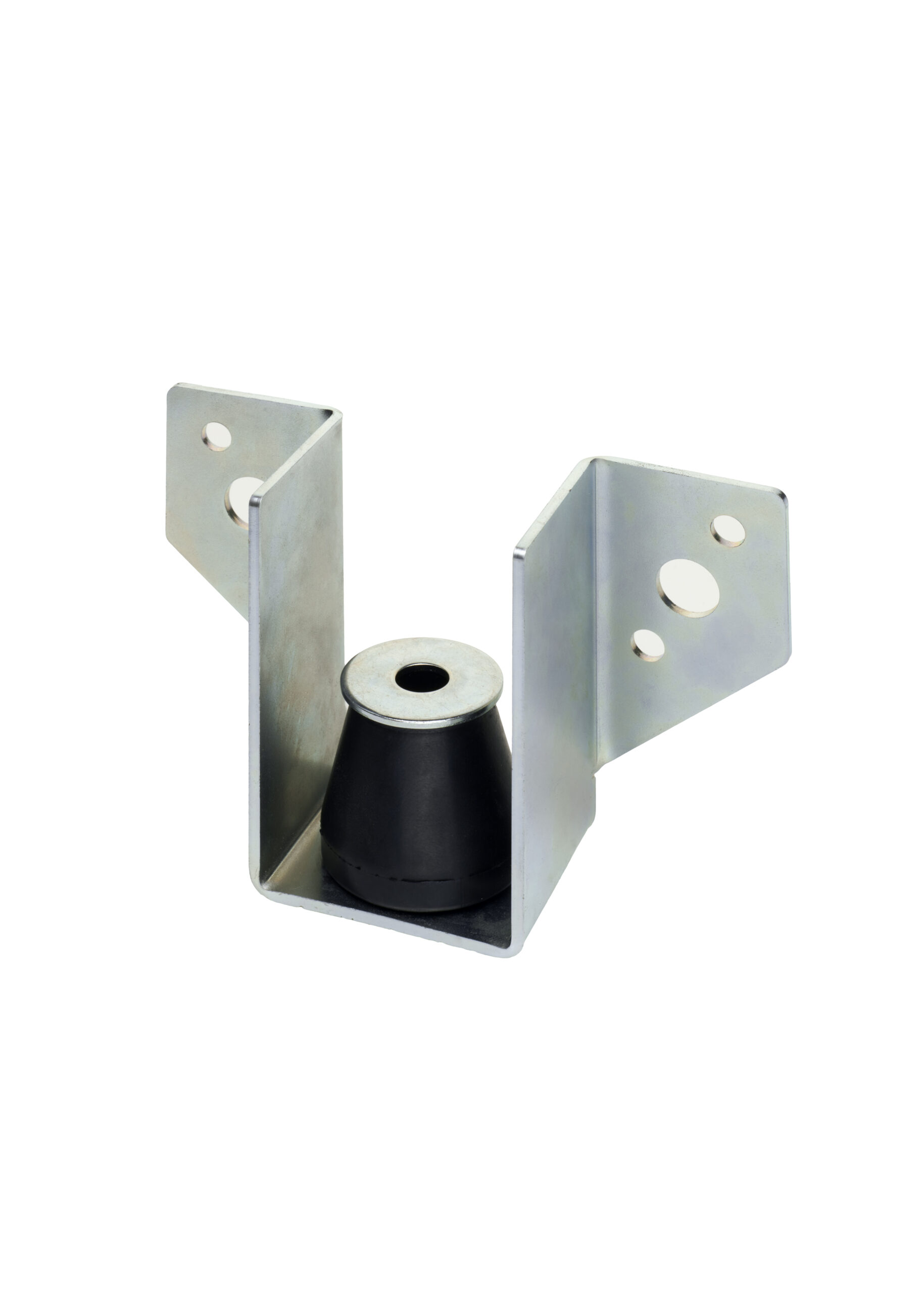

- Rubber hangers have natural rubber elements with deflections up to 6 mm.
- Acoustic Ceilings.
Related Products
Rubber Hangers
Type RH

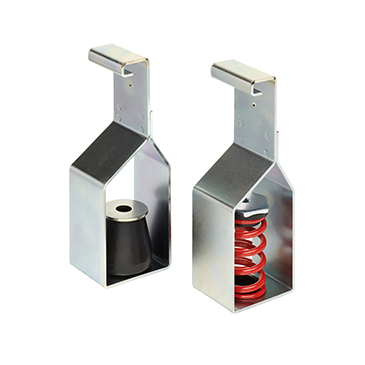

Spring and Rubber Acoustic Ceiling Hangers
Type ASH and ARH

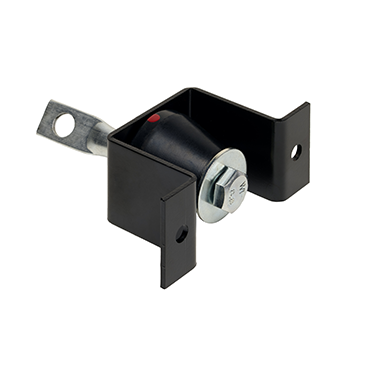

Acoustic Ceiling Hangers
