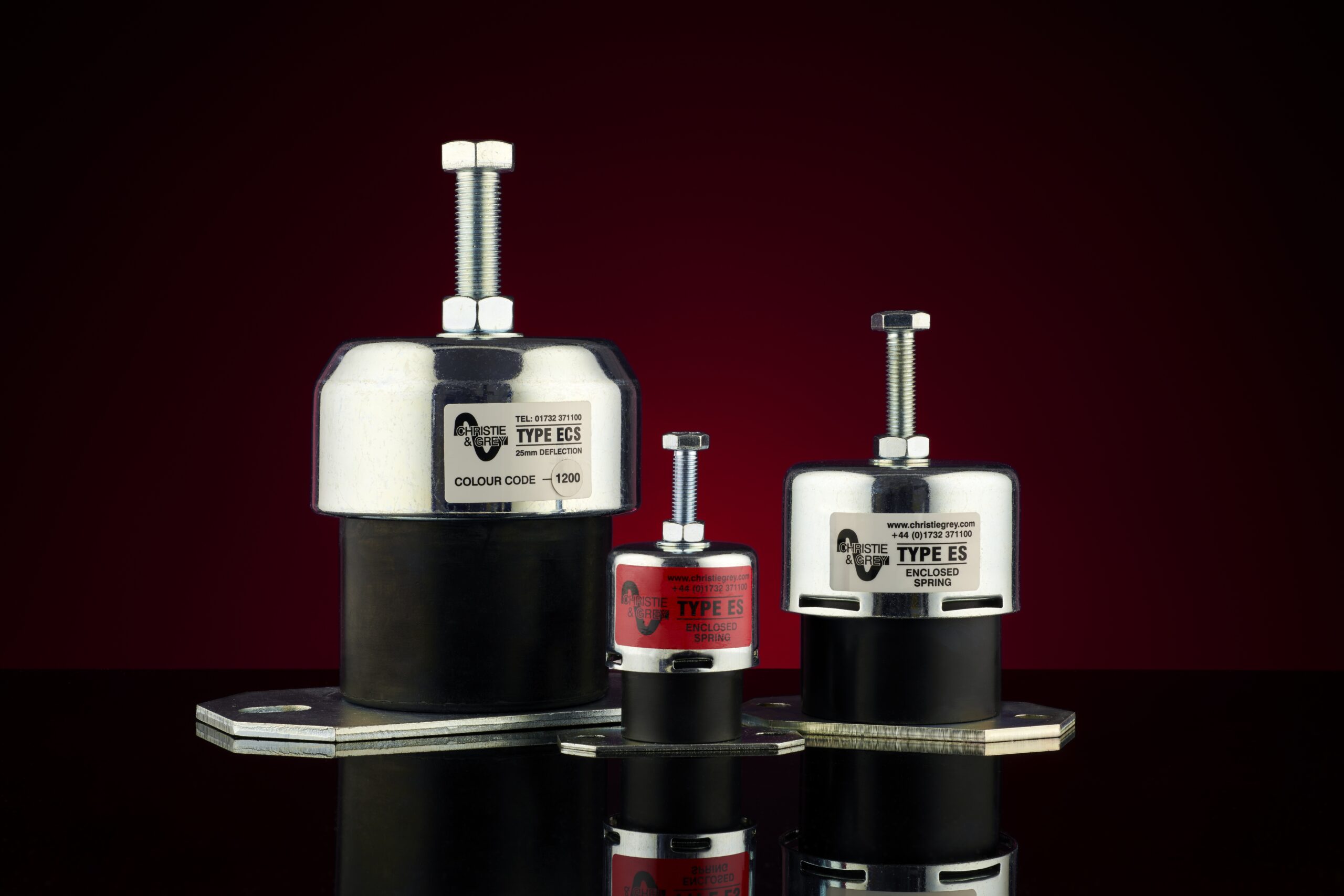

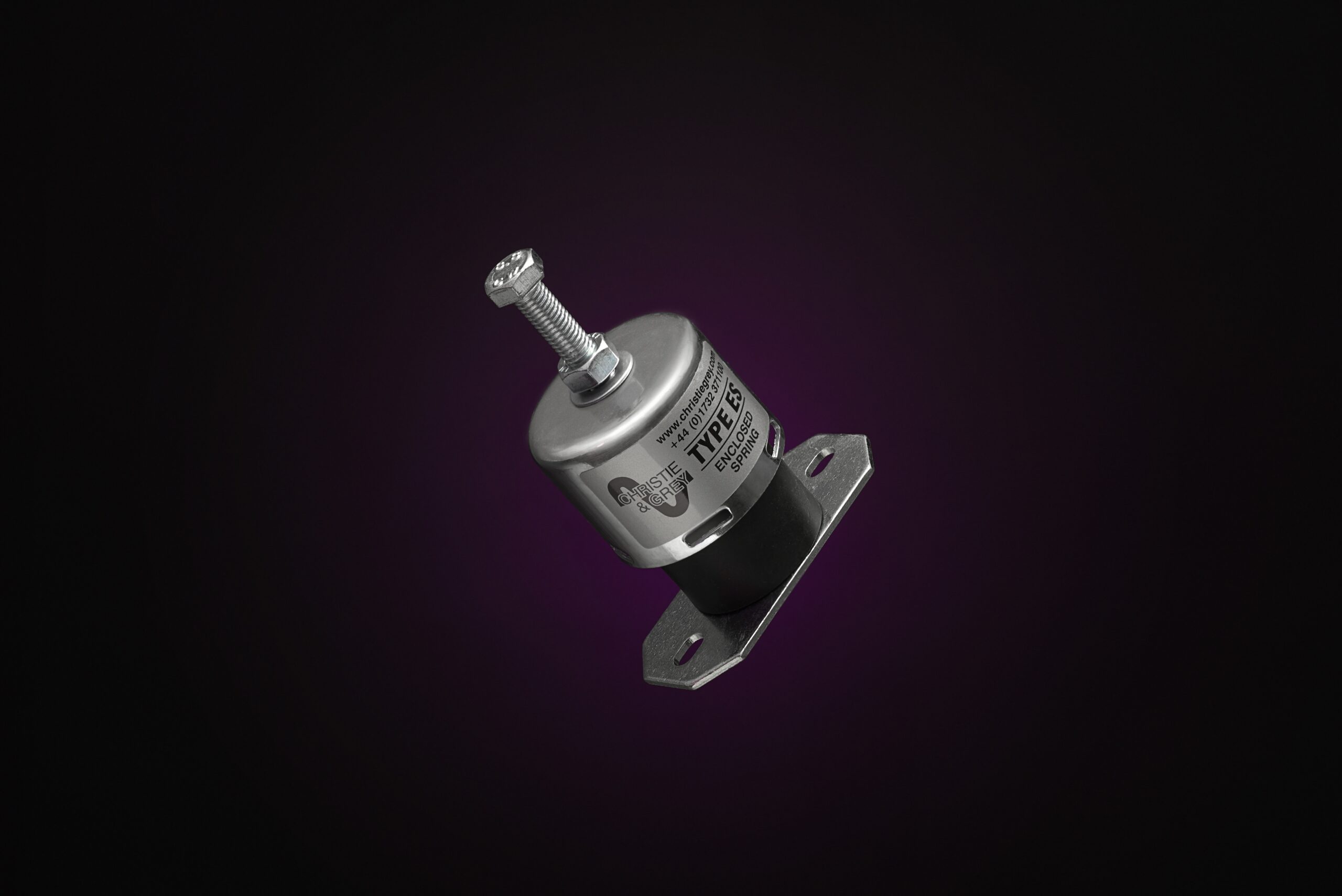

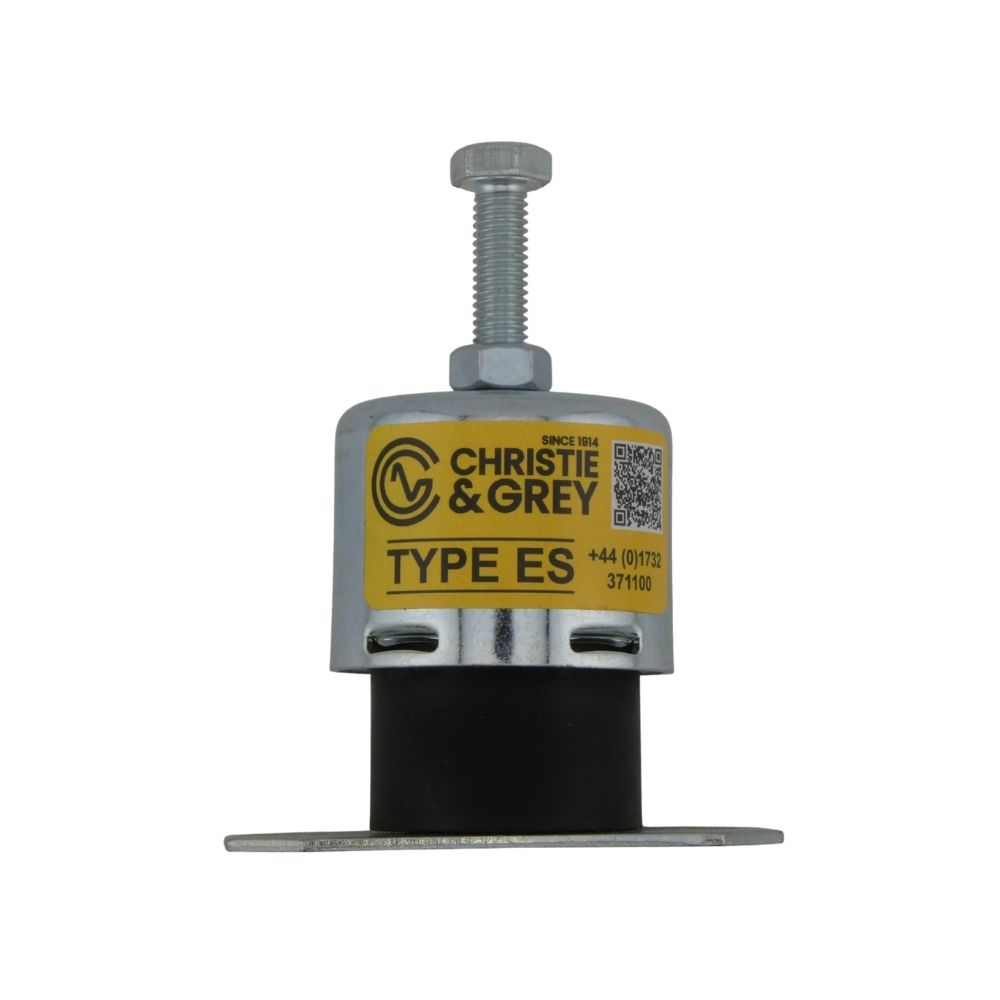

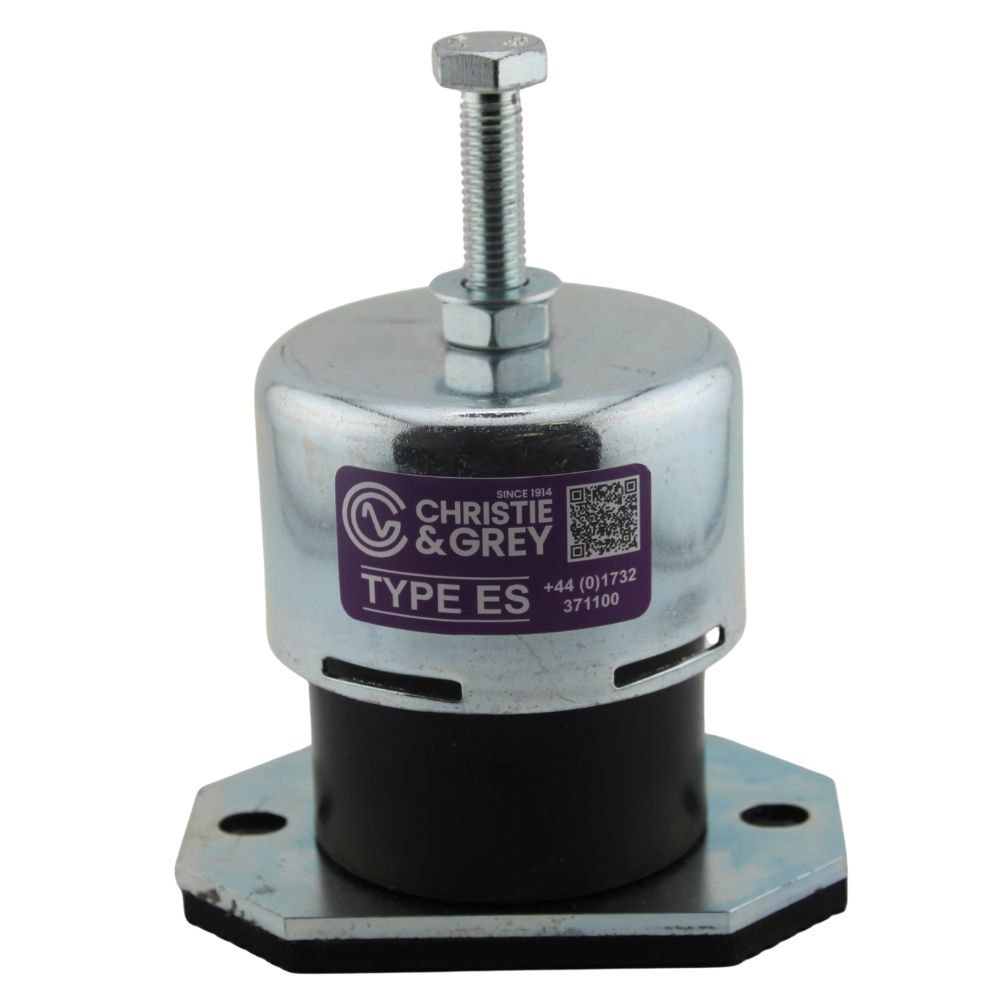

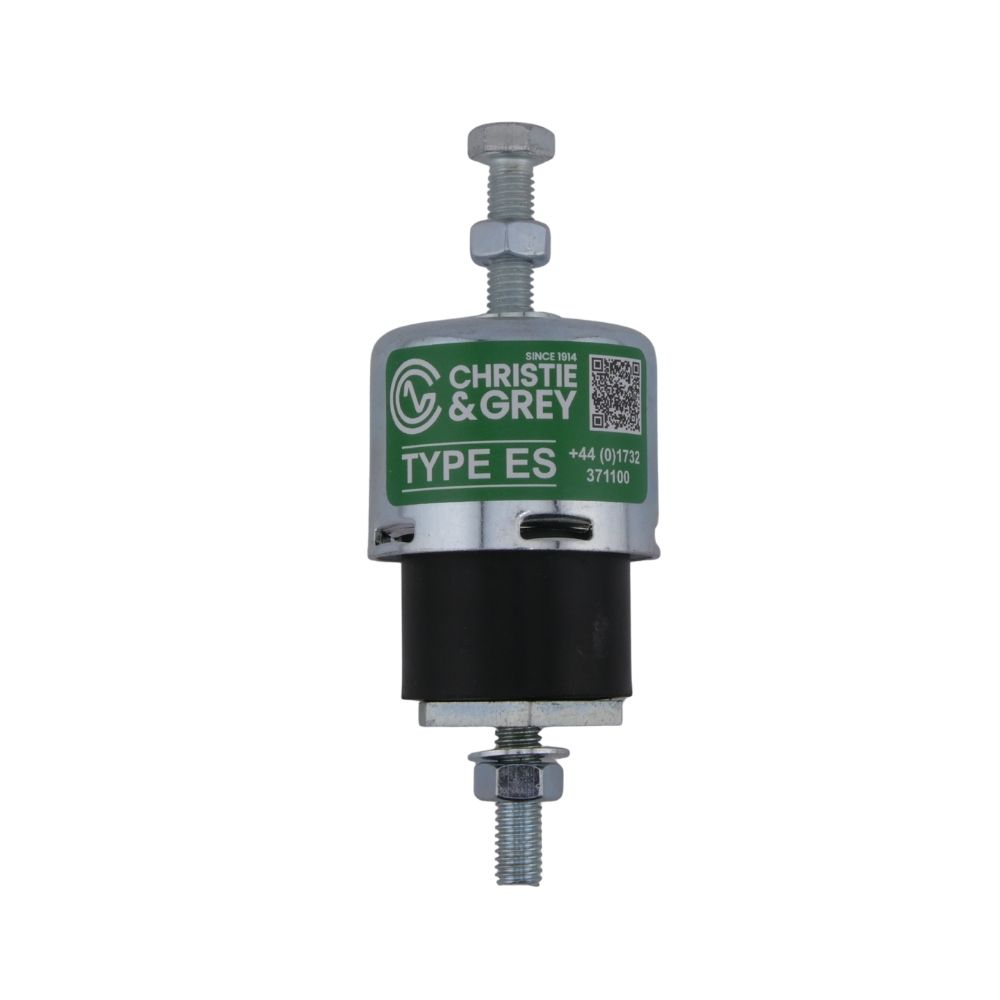

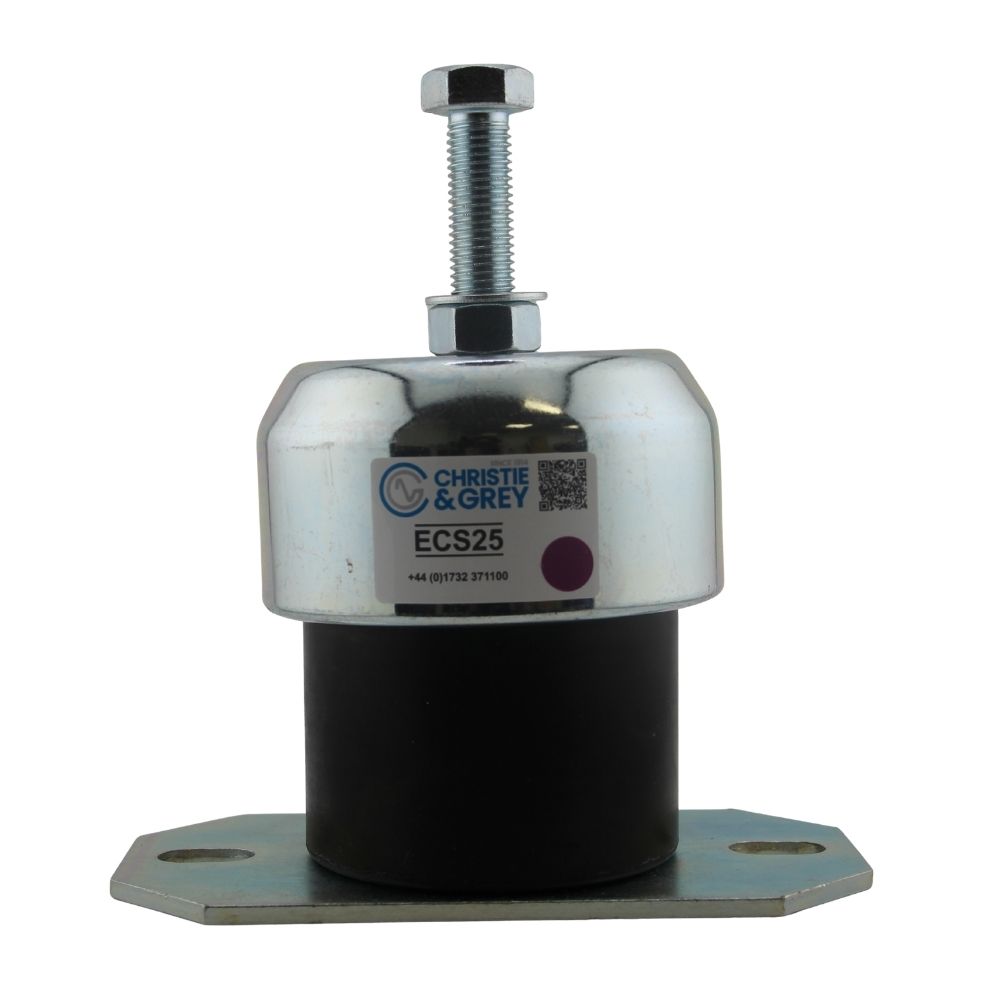

Enclosed Spring Mountings
Type ESB, ES, ES25, ECS25 and ECS50
A unique range of mountings designed primarily for building services applications where the control of low frequency vibration and noise emanating from mechanical plant is of paramount importance.
The benefits of a combined rubber and steel housing for the spring have helped establish the ES and ECS mountings as industry standards accepted by specifiers, equipment manufacturers and mechanical services installers alike.
More Information
- Nitrile rubber (oil resistant) lower spring housing eliminates the possibility of metallic continuity and ensures excellent acoustic performance. Steel reinforced on ECS range.
- All steel components are zinc plated.
- Full enclosed captive assembly protects the spring and controls transient motion.
- Nominal 15, 20, 25 & 50 mm deflection colour coded helical steel springs to BS1726 Class B laterally stable with 50% overload capacity.
- Simple single screw height adjustment.
- 6 mm thick ribbed rubber seating pads available for ES25 and ECS ranges.
- Colour coded labels for easy identification.
- Stainless Steel variants available.
- Axial and Centrifugal Fans.
- Air Handling Units.
- Chillers and Cooling Towers.
- Rotary and Multi Cylinder Compressors.
- Diesel Generating Sets.
Related Products
Genflex
For Industrial, Marine and Mobile Application
Shock Mounts
Type FCR
Inertia Pouring Frames
Type IPF
Open Spring Mountings
Type OSB, OSS and OS
Steel Spring Unit Isolator
Type ODL, ODS
Rectangular Sandwich Mounts
For Industrial and Marine and Mobile Applications
Open Restrained Springs
Type ORS25 and ORS50

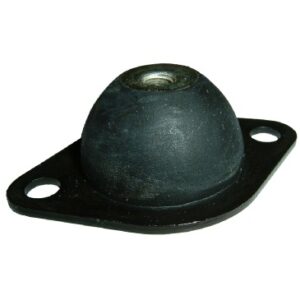

Small Rubber Mounting
